CAD Modeling in Albany, NY: 2D vs 3D Deliverables, What Manufacturers Prefer and When

If you build in Albany, NY you already know that purchasing, quality, and shop-floor teams still ask for different things. Some vendors want a clean PDF drawing. Others want a 3D model with notes right on the geometry. The good news is you do not have to guess. With the right plan and the right cad modeling, you can deliver exactly what your manufacturer expects and keep production moving.

What Albany Manufacturers Ask For Today

Across the Capital Region, many machine shops, fabricators, and assemblers accept both 2D drawings and 3D models. The preference depends on their workflow, inspection tools, and how parts move through their plant. Shops around the Port of Albany, Colonie, Troy, and Schenectady often still rely on 2D PDFs on the floor, while their programming team uses STEP files to drive CAM.

• 2D drawing as the authority of record with a supporting STEP or IGES file
• 3D model as authority with PMI or model annotations, plus a light “reference only” print

Tip: Always ask, “Which file is the authority of record, the model or the print?” Getting this answer up front avoids rework.

When 2D Drawings Are the Better Choice

2D CAD drafting shines when a part or assembly will be built by multiple vendors, reviewed by procurement, or inspected with handheld tools. It also fits teams that archive paper or PDF sets for compliance. A well-made 2D set puts the essentials in one place: views, exact dimensions, tolerances, finish notes, and a revision history the entire team understands.

If your Albany-area fabricator requests “shop-ready” prints, plan on an assembly drawing, ballooned bill of materials, and detail sheets for critical parts. Clean line weights, legible text, and standard symbols keep the work efficient on busy floors in Menands or Glenmont.

When drawings lead the build, consider pairing them with our 2d cad drafting and shop drawings so the geometry and notes match exactly, right down to layers and title blocks that read well at the printer.

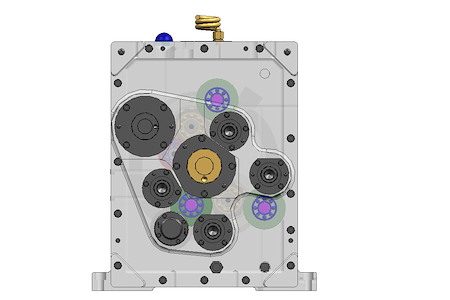

When 3D Models Are the Better Choice

3D models reduce ambiguity and speed reviews when form, fit, or motion are complex. If your part relies on curved surfaces, tight clearances, or kinematics, a precise model helps programming and inspection catch issues sooner. Model-Based Definition (MBD) with annotations on the geometry works well when your vendor’s workflow can consume PMI and your quality plan captures how they will verify it.

Parametric assemblies are also ideal for change-heavy projects common during spring ramp-ups in the Capital Region. You can update a feature once and cascade changes across drawings, exploded views, and cut lists.

Warning: Do not send a model that conflicts with a drawing. If you must provide both, state which one rules and put the same revision on each.

How to Decide: A Simple Albany Checklist

Use this quick test before you release files to your shop or vendor:

• Team tools: Does the vendor program from 3D and inspect on CMM, or do they build from 2D prints?
• Part complexity: Are surfaces and interfaces simple boxes and holes, or organic and multi-axis?
• Change rate: Will you iterate weekly, or is the design stable?
• Records: Does purchasing need a stamped PDF set for signoff?
• Supply chain: Will multiple Albany-area shops touch the same part?

If you answered mostly “2D,” prioritize a clear drawing package and include a neutral STEP for safety. Mostly “3D”? Make the model the authority and ensure your vendor is on board.

Standards That Keep Vendors On the Same Page

Whether you lead with 2D or 3D, drawing standards help everyone communicate. Keep notes concise, symbols standard, and views consistent so a machinist in West Albany and an inspector in Troy read the same intent.

Pro move: Use GD&T only where function demands it. Position, flatness, and profile controls shine on interfaces, hole patterns, and mating faces. Elsewhere, basic plus/minus may be enough. Over-tolerancing raises cost and time without improving fit.

Assembly drawings are still valuable in a model-first process. An exploded view with a parts list clarifies kitting and install order. If your team is new to these packages or wants a bigger-picture refresher, check out how we think about value in this post on why clients invest in cad modeling.

File Types Albany Shops Usually Expect

Neutral formats keep your supply chain flexible and reduce import surprises. Many Capital Region vendors are comfortable with:

• STEP (.step or .stp) for solids, especially AP214/AP242
• IGES (.igs) for legacy or surface-heavy geometry
• DXF/DWG for flat patterns, laser, and waterjet
• PDF for drawings and submittals

Send only what is needed, and label files with part number, revision, and date so purchasing, programming, and QA stay synchronized. Keep drawing and model revisions identical to avoid mix-ups during receiving and first article inspection.

2D vs 3D: Side-by-Side Advantages

Here is a plain-language view you can share with stakeholders:

• 2D drawing advantages: easy shop-floor use, quick redlines, BOM on the face, straightforward archiving, fits many vendor processes.
• 3D model advantages: fewer assumptions, faster DFM checks, accurate curvature and clearances, easier to validate with simulation and CMM.

In practice, most Albany projects benefit from a hybrid: a 3d cad modeling file to drive CAM and visualization, and a crisp PDF drawing for purchasing and build steps.

Real-World Scenarios Around Albany, NY

Light industrial and custom equipment projects in the Capital Region often travel between multiple shops. One team bends and lasers, another machines brackets, and a third handles final assembly. In these cases, the drawing set usually rules while the model provides geometry for programming. That way, outcomes match even if different vendors use different software.

For R&D, test rigs, and short-turn work tied to school-year schedules at local campuses, a model-first approach helps you pivot quickly. Update the model, regenerate views, and publish a short reference print so technicians understand assembly order. When tolerance stacks matter, use a few targeted GD&T callouts to control what actually affects fit.

If you are reviving a legacy part with only paper prints, consider reverse engineering and cad conversion. A clean parametric model plus a matched drawing protects tribal knowledge and prepares the part for future changes.

What We Recommend for Albany Manufacturers

Start with your vendor’s process, then tailor deliverables. If the shop builds from PDFs, lead with a consistent 2D package and include a STEP file that matches the print. If they program and inspect from 3D, make the model the authority and keep a “view-only” PDF for purchasing. Either way, keep titles, revisions, and notes aligned.

Need help deciding on the right mix? Our quick overview of cad modeling in Albany, NY explains how we balance clarity, speed, and accuracy across local supply chains while keeping your documentation clean.

How Creative CAD Solutions L.L.C. Makes This Easy

Our process is built for clear communication and predictable handoffs:

• Discovery: we confirm the authority of record and the formats your shop prefers
• Modeling: parametric parts and assemblies that drive drawings and exploded views
• Drafting: readable 2D views with consistent layers, symbols, and revision control
• Validation: simple checks for interferences, motion, and tolerance-critical features
• Handoff: labeled PDFs and neutral files zipped by revision for painless purchasing

If you want the big picture of related capabilities, browse our full cad services and keep this article handy for your next pre-release meeting.

Get CAD Modeling That Matches What Manufacturers Expect

Bigger assembly? Need prototype parts first? We can pair modeling and drawings with 3d prototyping so you can review form and fit before you lock production.

You bring the problem. We bring the file set that gets it built.
